Indoor air purification and humidification unit

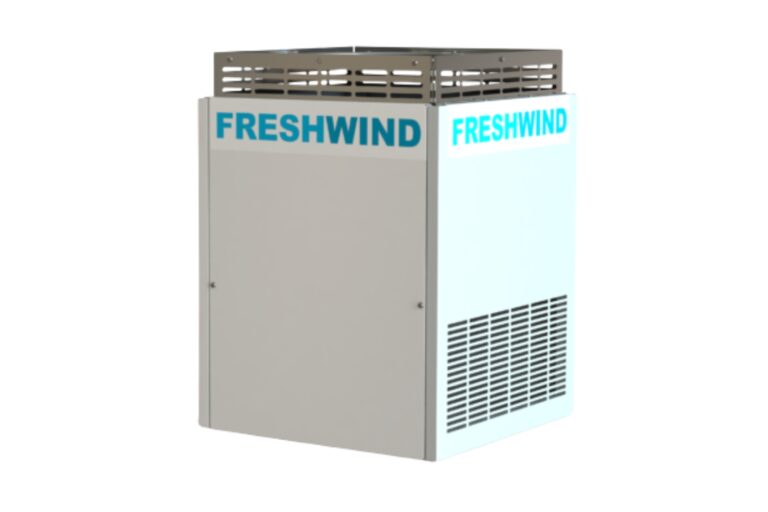

Huminet 500
Clean and Controlled Humidity for Demanding Spaces
Huminet 500 is a powerful FreshWind mist humidification unit that produces fine mist without wetting surfaces. It is ideal for spaces where consistent air humidity is required, helping to improve air quality and reduce dust issues. Its compact size and lightweight structure enable easy installation, even in challenging environments.
Typical Applications:
Production facilities, warehouses, cleanrooms, laboratories, public spaces, and other larger indoor areas (200–300 m² / 500–1000 m³).
Efficient Humidity Control
Production facilities, warehouses, cleanrooms, laboratories, public spaces, and other larger indoor areas (200–300 m² / 500–1000 m³).
Technical Specifications
Main Unit Dimensions and Construction
- Height: Ø 800 mm
- Depth: Ø 630 mm
- Width: Ø 600 mm
- Weight: 80 kg (including filters and fan)
Fan
- Airflow: 200–1080 m³/h
- Voltage: 220 V / 50 Hz
- Power: 750 W
- Noise Level: 37–70 dB(A)
- Operating Temperature: +10 – +55 °C
Filtration:
- 2 bag filters, size 600×600×300 mm
- Filter Class: ISO 16890 G3–F9
- Optional Absolute Filter available
- Pressure Drop: 0–500 Pa
Humidification:
- High-pressure pump, max. 30 kg/h
- Pressure: 70–80 bar
- Voltage: 220 V / 50 Hz
- Power: 920 W
- Water Filter: 5 µm
- Recommended Water Quality: Clean drinking water
- Operating Temperature: +10 – +55 °C
Additional:
- Local temperature and humidity measurement
- Integration capability with process control systems
